Creek Audio Voyage i20, Caratteristiche tecniche
Power output @ 1% THD >480 Watts into 2 Ohms, one channel driven
Power output @ 1% THD >240 Watts into 4 Ohms, both channels driven
Power output @ 1% THD >120 Watts into 8 Ohms, both channels driven (31V RMS)
Continuous max output current >10A (sine wave)
Peak output current +/-26 Amps, current burst into 0.5 Ohm load
THD and Noise <0.002% – 20 Hz to 20 kHz @ 2/3 rated power 8 Ohms Signal to Noise Ratio 102dBA Line input Damping factor >400
Frequency Response 1Hz to 100 kHz, +/-2dB
Power amp gain 33.4dB (x 47) un-balanced
Pre-amplifier analogue gain 0dB, 3dB, 6dB, 9dB, 12dB, selectable on inputs 1, 2, 3, & 4
Input sensitivity 645mV for maximum power output with 0dB pre-amp gain
Crosstalk >80dB at 1 kHz
DC offset < +/-5mV

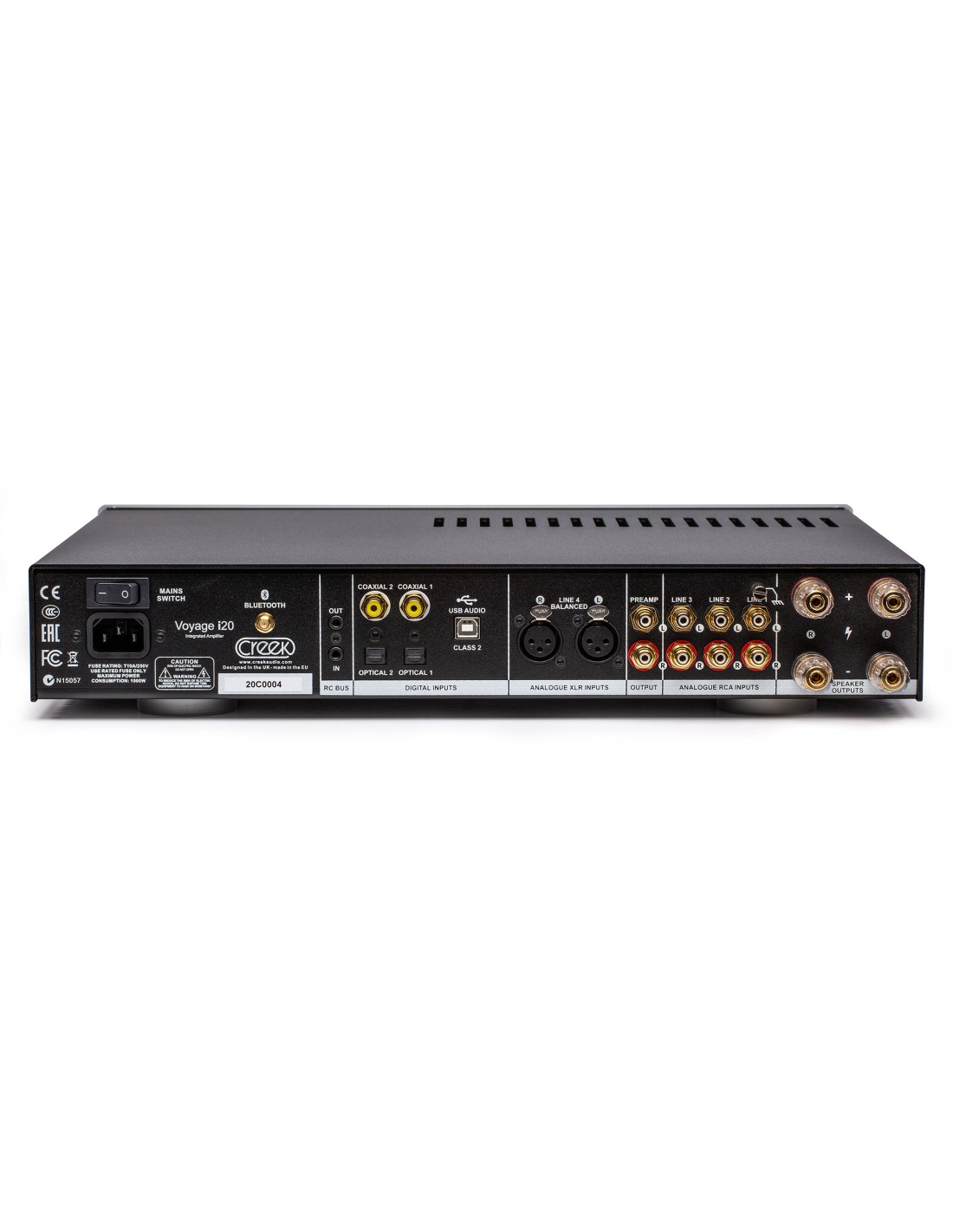

Pre-Amp Inputs 4 x RCA (un-balanced) and 1 x XLR (balanced)
Pre-amp output 1 x RCA (unbalanced)
Plug-in Phono options Input 1 changes to Phono with Sequel mk4 MM Phono fitted
Digital inputs:
2 x SPDIF Co-Axial – (192kHz 24 bit).
2 x TOSLINK optical – (192kHz -24 bit).
1x USB class 2 audio – PCM 768kHz, 32-bit, DSD 22.4MHz.
1x Bluetooth – aptX HD
DAC max performance Delta Sigma PCM 768kHz, 32-bit, DSD 22.4MHz
IR BUS Joins external IR sensor and daisy chain to another device
Loudspeaker Outputs Binding posts – 4mm rear and side entry plus spade lug
Headphone Output (on front panel) 6.3mm jack socket, suitable for headphone 8 – 600 Ohms
Speaker output impedance <0.02 Ohms 20Hz to 20 kHz
Mains voltage range 230V nominal. Working range – 170V – 265V AC – 50Hz. 115V nominal. Working range – 85V – 140V AC – 60Hz. Factory set, 230V or 115V, not user adjustable
Finish colours Silver or Black front panel. Outer cover is black
Power Consumption Idle, Max, Standby <20 Watts, 600 Watt, 0.5Watts
Auto Standby 30 mins – no signal. User adjustable
Weight 9kgs (20 lbs) net. 12kgs (26.5 lbs) packed
Size W/H/D 43 x 8 x 35 cm (17 x 2.3 x 13.8”)
Prodotto espositivo garanzia 24 mesi
