Klipsch RP-504C II è un canale centrale pensato per le configurazioni multimediali più esigenti. Al suo interno include tutte le grandi innovazioni della casa di Indianapolis, riproposte in una configurazione ideale per esaltare i toni medi dei dialoghi di film e serie TV.

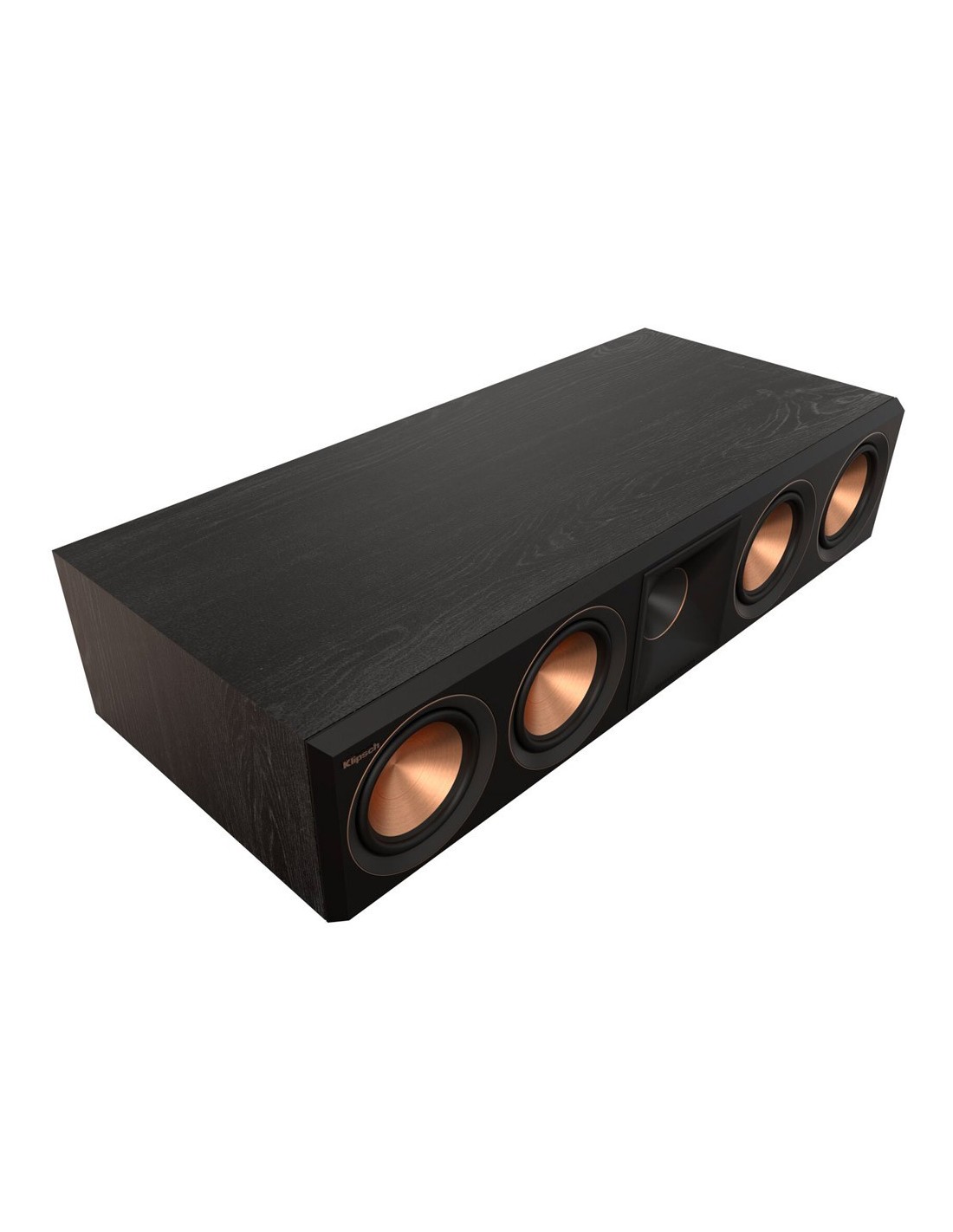

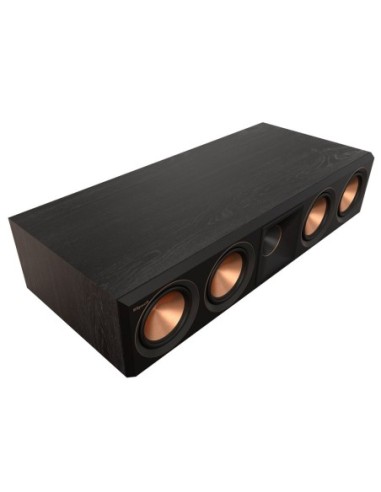

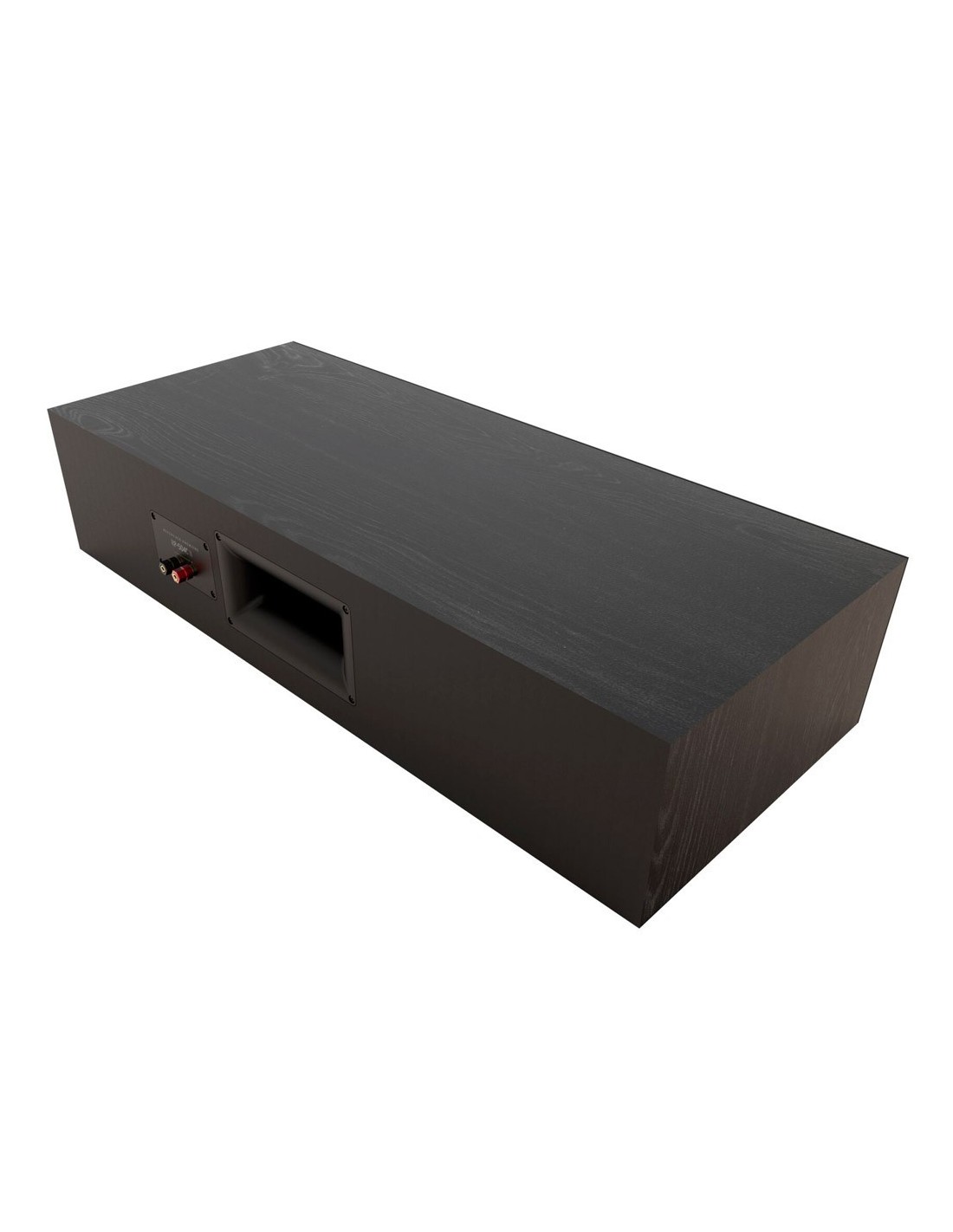

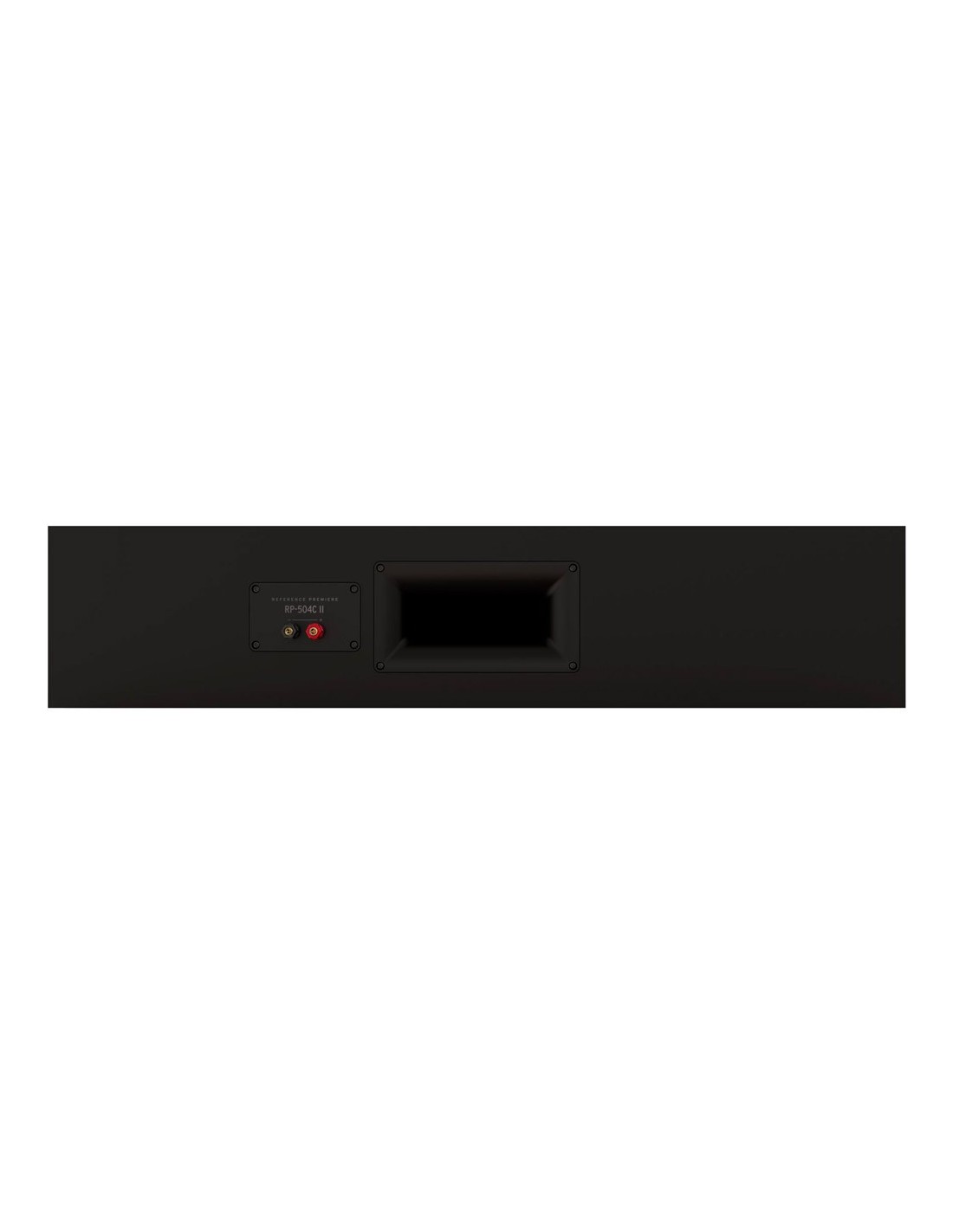

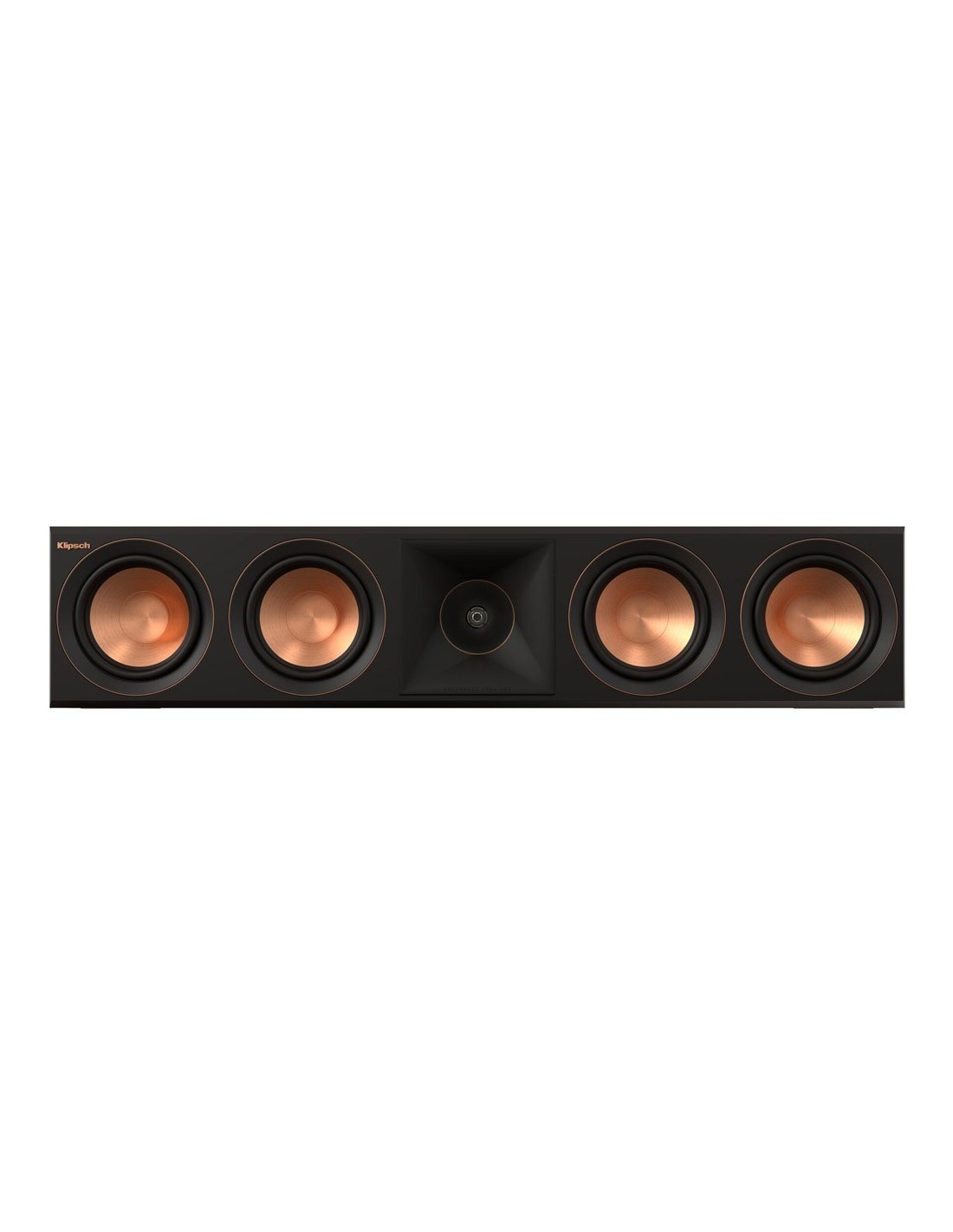

Sono presenti quattro woofer da 5,25 pollici con cono Cerametallic, capaci di offrire una riproduzione con distorsione minima e massima efficienza. Il tweeter LTS da 1 pollice, invece, sfoggia il rinnovato sistema di caricamento a tromba Tractrix Horn 90° X 90°, in grado di registrare performance dettagliate e bassa distorsione. Il trasduttore dedicato agli alti, inoltre, è ospitato in una camera di ventilazione che elimina le distorsioni, per esecuzioni ancora più limpide. Sul retro trova spazio poi una porta Tractrix per la gestione dei flussi d’aria e l’enfatizzazione dei bassi.
Tradotta in numeri, la configurazione appena citata propone una risposta in frequenza che va da 50 Hz a 25 kHz, con sensibilità di 96 dB e impedenza nominale su 8 ohm. La potenza di amplificazione richiesta, invece, è di 150 W (con picco a 600 W).
Tanti spunti di interesse provengono anche dall’analisi del cabinet in MDF, rinforzato e pronto a regalare la necessaria stabilità. I tamponi in sughero sostituiscono quelli in gomma, per una maggiore resistenza.
Disponibile anche in versione Walnut.
FREQUENCY RESPONSE 50-25kHz +/- 3dB
SENSITIVITY (SPL at 1M, half-space anechoic with 2.83V input, in-room sensitivity) 96dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK) 150W/600W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 650Hz/1950Hz
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER Quad 5.25" Cerametallic Cone Woofers with Faraday rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS Single aluminum binding posts
HEIGHT INCHES (MM) 6.87" (17.4 cm)
WIDTH INCHES (MM) 32.06" (81.4 cm)
DEPTH INCHES (MM) 15.08" (38.3 cm)
PRODUCT WEIGHT LBS (KG) 36.3lb (16.45kg)
FINISH Ebony, Walnut
ACCESSORIES Angle screw
