Musical Fidelity M6x DAC Silver - Convertitore DAC

Convertitore DAC. Doppi convertitori Sabre ESS ES9038Q2M 32bit/768KHz in configurazione doppio differenziale. Processore Altera MAX II 16-core. MQA e DSD512 nativo. Trasformatore toroidale super silenzioso. Ingressi digitali: 2 x ottico, 1 x coassiale, 1 x AES/EBU e USB-B. Uscite analogiche RCA e XLR fisse o variabili. Uscita cuffia da 6,3mm con stadio di potenza in classe AB.
Vincitore del premio EISA DAC 2022-2023


Caratteristiche tecniche

DAC
DAC Circuit: 32 bit Hyperstream II
DAC Chip: 2x ES9038Q2M (dual differential)
Total correlated jitter: <12 picooseconds peak to peak
Linearity: <0.4dB down to -130dB
Frequency response: -0,1dB at 10Hz, 0dB at 1kHz, -0,4dB at 20kHz
Channel separation: >130dB at 10kHz @ 0dBFS
Signal to noise: >120dB "A"- wtd 1kHz @ 0dBFS
Total harmonic distortion: < 0,0005% at 1kHz @ 0dBFS

Digital Inputs
1x Coax, up to 24bit 192kHz (stereo PCM + MQA)
2x Optical, up to 24bit 192kHz (stereo PCM + MQA)
1x AES/EBU, up to 24bit 192kHz (stereo PCM + MQA)
1x USB Audio Class 2.0, 'USB B'; up to 32 bit 768kHz (stereo PCM + MQA), DSD 256 (stereo DoP), DSD512 (stereo native)

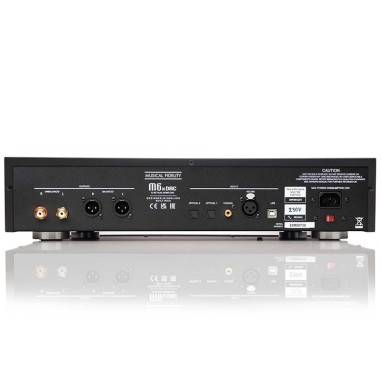

Analogue Outputs
1 pair line level RCA fix/var @ 2V RMS at 0dBFS
1 pair line level XLR fix/var @ 4V RMS at 0dBFS
Output impedance: < 10 ohms
1 Headphone out 6.3mm jack variable

Headphone Amp
Power: 1.5W / channel into 32 ?
Output impedance: Min. recommended 16? headphones
THD: < 0,005% at 1kHz @ 0dBFS
Signal/noise ratio: >115dB "A" wtd
Frequency response: +0.1, -0.4dB 20Hz to 20kHz

General Information
Dimensions (WxHxD): 440 x 100 x 390mm
Main voltages: 230V/115V Internally set or 100V optional
Max. Consumption: 20W, <0.5W in standby
Weight: 6.9kg
